Bellhousing Kit [Gearbox: Ford Single Rail; Engine: Chev Big Block; Clutch: Right Hand Cable]
SKU: bh086kitfsrbbccab
Suitable for a Right Hand Cable Clutch ONLY
MUST Use a 10" (254mm) Diameter Clutch Plate
It is HIGHLY Recommended that You Purchase the Thrust Bearing and Carrier as well as the Throwout Fork to make this Kit Work. Can be Purchased Below

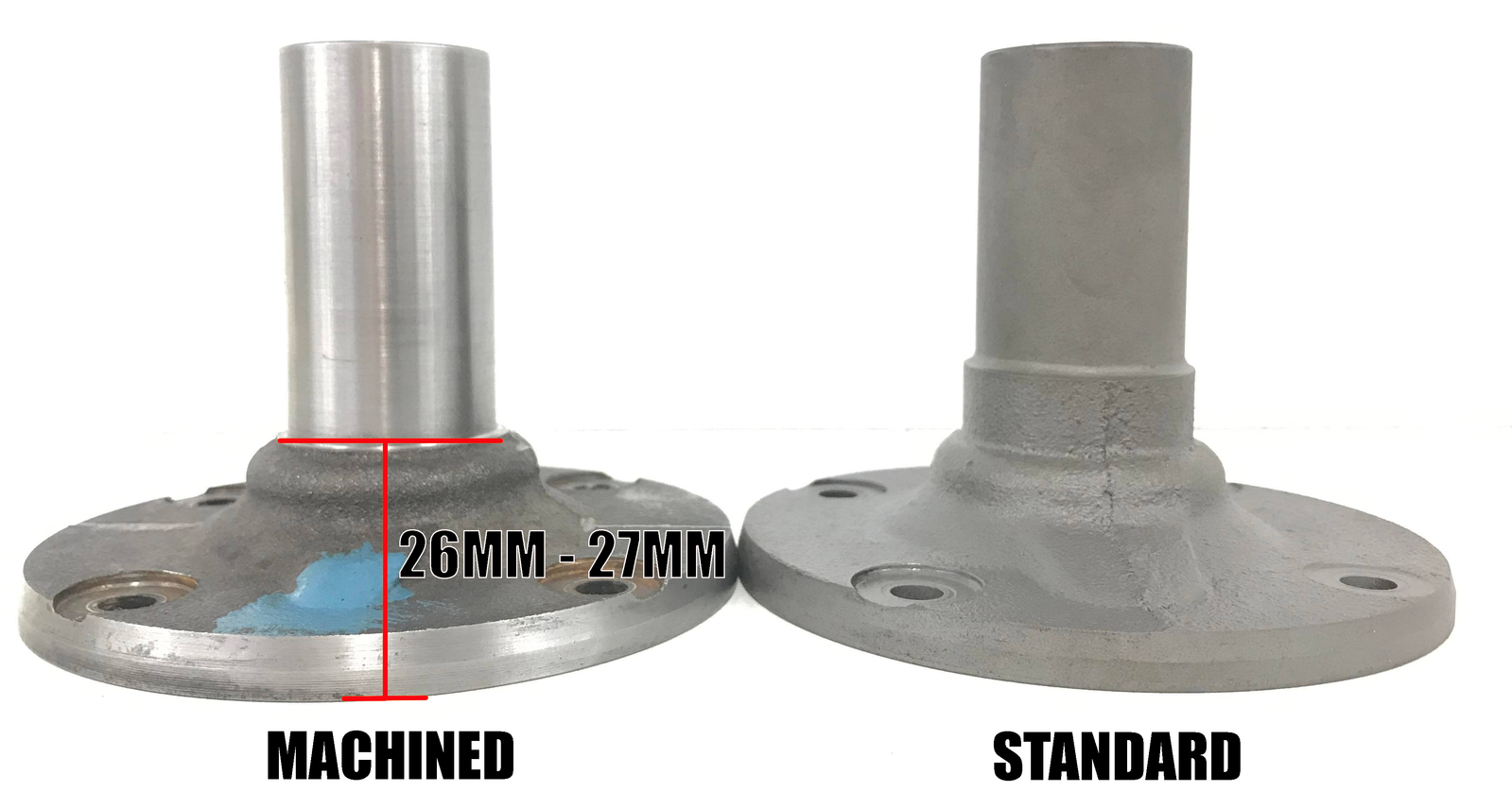

The Nose Cone needs to be Machined as per Images, we offer this Service ($50.00) as a Changeover or You Can get it get it done Yourself
| Kit Includes | ||
|---|---|---|
| Part | Part # | Qty |

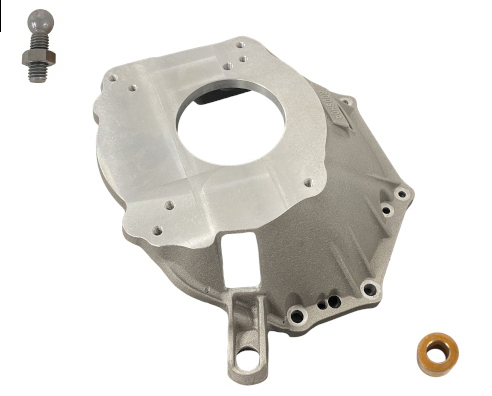

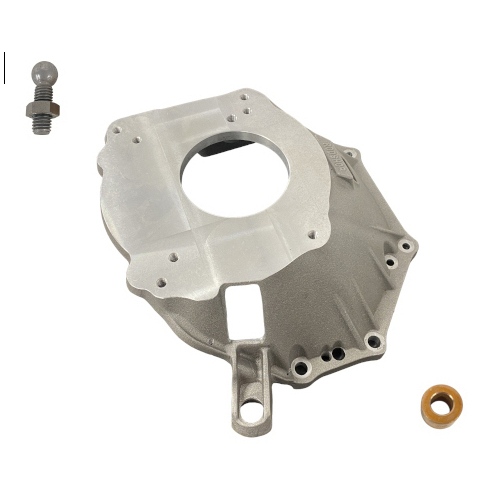

| Bellhousing | bh086 | 1 |
| Pivot Ball | pb01 | 1 |
| Spigot Bush | sb11 | 1 |
| Washer | washer02 | 4 |
| Bolts | 7/16" x 1 1/4" UNC | 4 |
| Flat Washers | 7/16" | 4 |
| Spring Washers | 7/16" | 4 |
| Optional Extras Available for Purchase Below | ||
|---|---|---|
| Part | Part # | Price |
| Clutch Cable Bush | bush07 | $25.00 |
| Clutch Plate | cp23 | $160.00 |
| Pressure Plate | pplate18 | $240.00 |
| Throwout Fork | tf12 | $210.00 |
| Thrust Bearing & Carrier | tb14a | $68.00 |
Suitable for a Right Hand Cable Clutch ONLY
MUST Use a 10" (254mm) Diameter Clutch Plate
It is HIGHLY Recommended that You Purchase the Thrust Bearing and Carrier as well as the Throwout Fork to make this Kit Work. Can be Purchased Below
The Nose Cone needs to be Machined as per Images, we offer this Service ($50.00) as a Changeover or You Can get it get it done Yourself
| Kit Includes | ||
|---|---|---|
| Part | Part # | Qty |
| Bellhousing | bh086 | 1 |
| Pivot Ball | pb01 | 1 |
| Spigot Bush | sb11 | 1 |
| Washer | washer02 | 4 |
| Bolts | 7/16" x 1 1/4" UNC | 4 |
| Flat Washers | 7/16" | 4 |
| Spring Washers | 7/16" | 4 |
| Optional Extras Available for Purchase Below | ||
|---|---|---|
| Part | Part # | Price |
| Clutch Cable Bush | bush07 | $25.00 |
| Clutch Plate | cp23 | $160.00 |
| Pressure Plate | pplate18 | $240.00 |
| Throwout Fork | tf12 | $210.00 |
| Thrust Bearing & Carrier | tb14a | $68.00 |
Suitable for a Right Hand Cable Clutch ONLY
MUST Use a 10" (254mm) Diameter Clutch Plate
It is HIGHLY Recommended that You Purchase the Thrust Bearing and Carrier as well as the Throwout Fork to make this Kit Work. Can be Purchased Below
The Nose Cone needs to be Machined as per Images, we offer this Service ($50.00) as a Changeover or You Can get it get it done Yourself
| Kit Includes | ||
|---|---|---|
| Part | Part # | Qty |
| Bellhousing | bh086 | 1 |
| Pivot Ball | pb01 | 1 |
| Spigot Bush | sb11 | 1 |
| Washer | washer02 | 4 |
| Bolts | 7/16" x 1 1/4" UNC | 4 |
| Flat Washers | 7/16" | 4 |
| Spring Washers | 7/16" | 4 |
| Optional Extras Available for Purchase Below | ||
|---|---|---|
| Part | Part # | Price |
| Clutch Cable Bush | bush07 | $25.00 |
| Clutch Plate | cp23 | $160.00 |
| Pressure Plate | pplate18 | $240.00 |
| Throwout Fork | tf12 | $210.00 |
| Thrust Bearing & Carrier | tb14a | $68.00 |
| SKU | bh086kitfsrbbccab |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 7.0000kg |
| Shipping Width | 0.520m |
| Shipping Height | 0.170m |
| Shipping Length | 0.520m |
