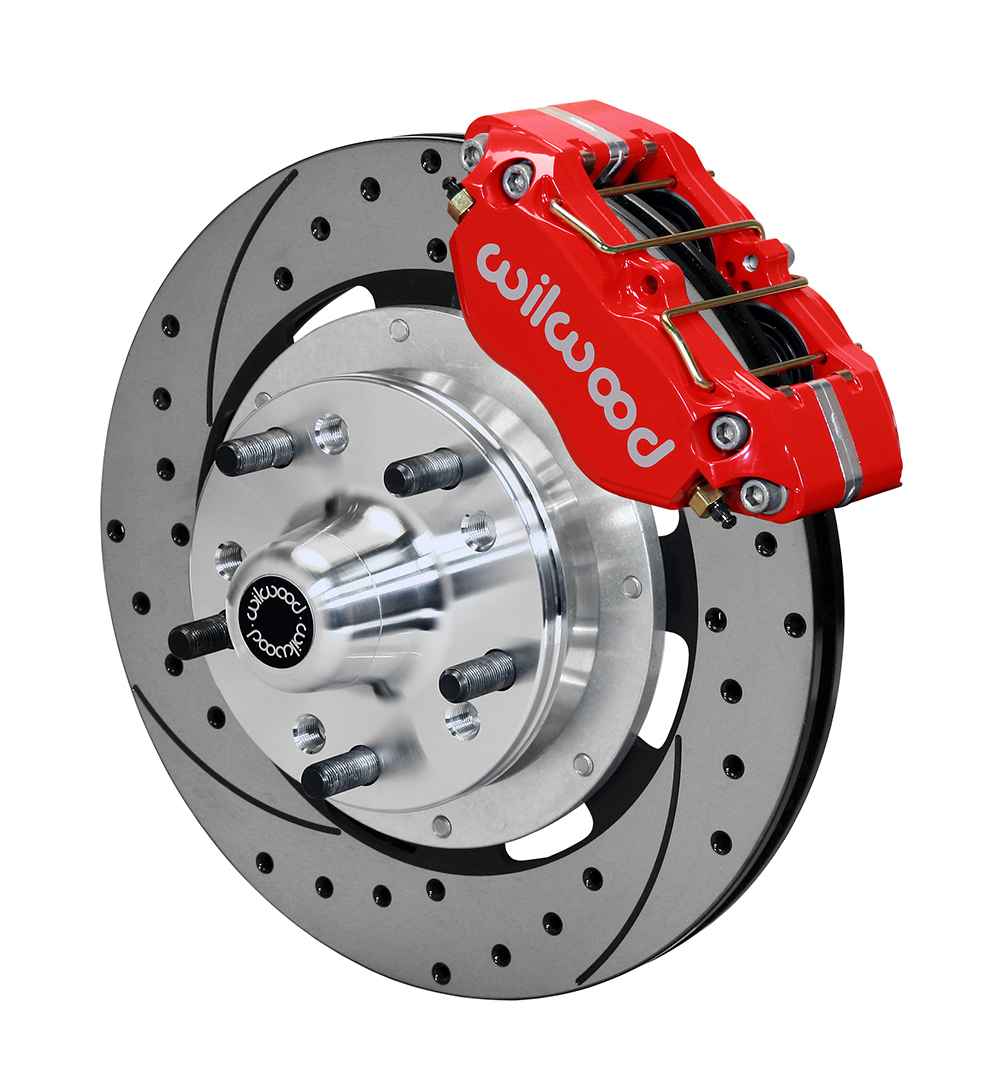

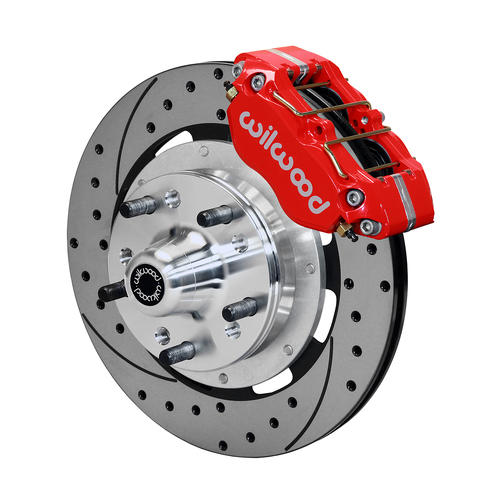

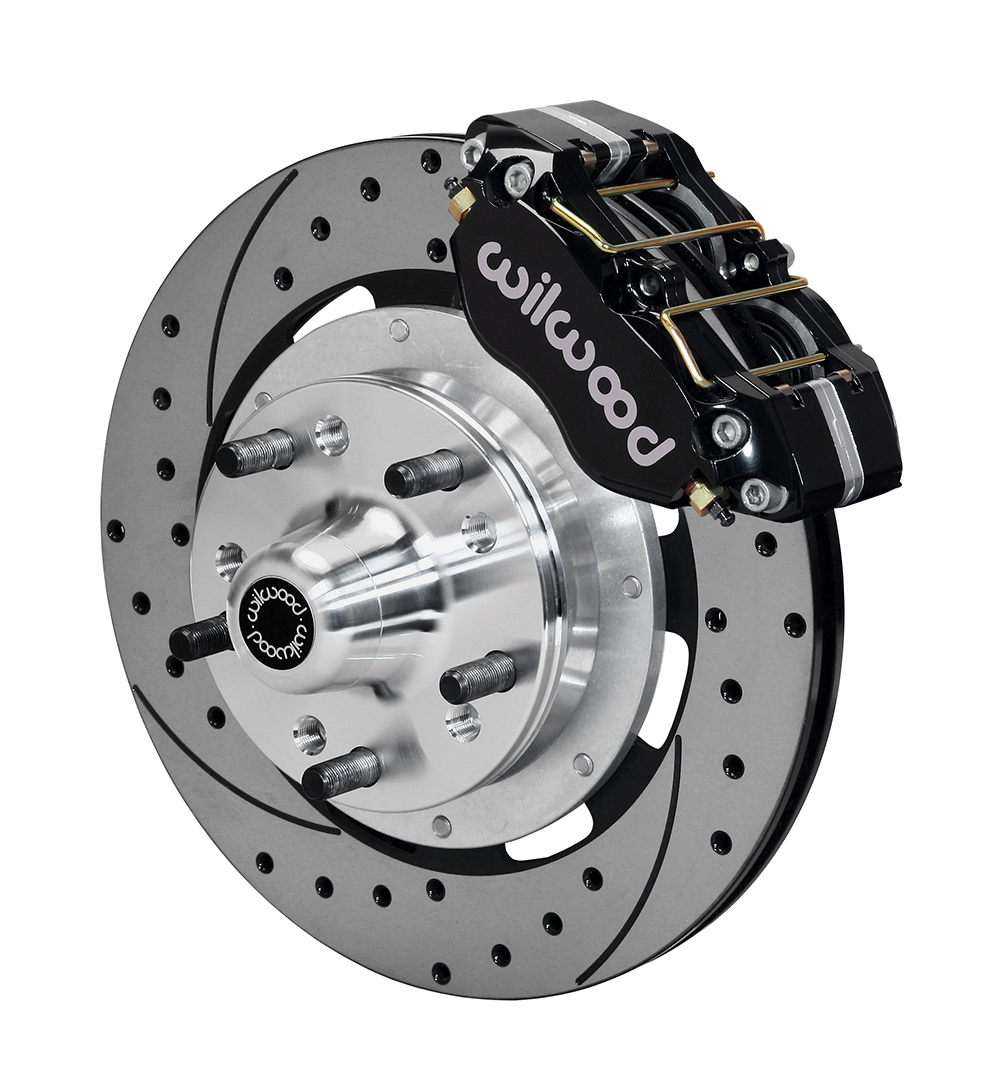

Wilwood Front Disc Brake Conversion for FX & FJ Holdens
SKU: wwdbfhfxfj
A Brief Kit Overview Follows, for Specifications of the Major Kit Components Scroll down to the Kit Description
Important Information
| HD or HR Disc Brake Stub Axles MUST be Used with this Kit |
| The Wilwood Calipers are Dust Booted and Meet the Australian Design Rules (ADRs) |
| Once You have Chosen a Brake Package Refer to the Wheel Clearance Diagram to Ensure it will Fit Your Wheels |
Brake Packages
| 280 Kit - May Fit a Min 14" (356mm) Wheel Diameter | ||||
| Calipers | Rotors | |||
| Colour: Black or Red 4 Pistons |
Diameter: 11" (280mm) Width: 0.81" (20.6mm) |
|||
| 320 Kit - May Fit a Min 15" (381mm) Wheel Diameter | ||||
| Calipers | Rotors | |||
| Colour: Black or Red 4 Pistons |
Diameter: 12.19" (310mm) Width: 0.81" (20.6mm) |
|||
| 355 Kit - May Fit a Min 18" (457mm) Wheel Diameter | ||||
| Calipers | Rotors | |||
| Colour: Black or Red 6 Pistons |
Diameter: 14" (356mm) Width: 1.1" (28mm) |
|||
Important Information
| HD or HR Disc Brake Stub Axles MUST be Used with this Kit |
| The Wilwood Calipers are Dust Booted and Meet the Australian Design Rules (ADRs) |
| Once You have Chosen a Brake Package Refer to the Wheel Clearance Diagram to Ensure it will Fit Your Wheels |
Brake Package Specifications
The Prices on the Wilwood Website are in American Dollars and are Not Indicative of Our Prices
Click on the Images Below to get the Specifications of the Major Kit Components, You Will Need to click 'Back' to Return to this Page
| 280 Kit - May Fit a Min 14" (356mm) Wheel Diameter | ||||
| Calipers | Rotors | Rotor Hats | Hubs | |
|
|
| Not Applicable |
|
| 320 Kit - May Fit a Min 15" (381mm) Wheel Diameter | ||||
| Calipers | Rotors | Rotor Hats | Hubs | |
|
|
| Not Applicable |
|
| 355 Kit - May Fit a Min 18" (457mm) Wheel Diameter | ||||
| Calipers | Rotors | Rotor Hats | Hubs | |
|
|
|
|
|
A Brief Kit Overview Follows, for Specifications of the Major Kit Components Scroll down to the Kit Description
Important Information
| HD or HR Disc Brake Stub Axles MUST be Used with this Kit |
| The Wilwood Calipers are Dust Booted and Meet the Australian Design Rules (ADRs) |
| Once You have Chosen a Brake Package Refer to the Wheel Clearance Diagram to Ensure it will Fit Your Wheels |
Brake Packages
| 280 Kit - May Fit a Min 14" (356mm) Wheel Diameter | ||||
| Calipers | Rotors | |||
| Colour: Black or Red 4 Pistons |
Diameter: 11" (280mm) Width: 0.81" (20.6mm) |
|||
| 320 Kit - May Fit a Min 15" (381mm) Wheel Diameter | ||||
| Calipers | Rotors | |||
| Colour: Black or Red 4 Pistons |
Diameter: 12.19" (310mm) Width: 0.81" (20.6mm) |
|||
| 355 Kit - May Fit a Min 18" (457mm) Wheel Diameter | ||||
| Calipers | Rotors | |||
| Colour: Black or Red 6 Pistons |
Diameter: 14" (356mm) Width: 1.1" (28mm) |
|||
| SKU | wwdbfhfxfj |
| Brand | Wilwood |
| Shipping Weight | 21.0000kg |
| Shipping Width | 0.520m |
| Shipping Height | 0.190m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.051376000m3 |
